Brass Electrodes Dielectric Strength Tester UL1310 12KV For Insulating Material

Name: Brass Electrodes Dielectric Strength Tester UL1310 12KV For Insulating Material
Brand: Pego Tester
Price: 1 USD

Wholesale Brass Electrodes Dielectric Strength Tester UL1310 12KV For Insulating Material from china suppliers

Brand Name : Pego Tester

Model Number : PG-DS12

Certification : Third-lab calibration certificate

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets/months

Delivery Time : 7 working days

Packaging Details : Each packed in a carton box

Standard : IEC60065, UL1310

Electrodes : diameter 5mm, diameter 6.4mm

Material of electrodes : brass or stainless steel

edges rounded radius : 0.5mm and 0.8mm

Application : for testing insulating material

Name : Dielectric srrength test instrument

Contact Now

IEC60065 and UL1310 Dielectric Strength Tester for Testing Insulating Material with Brass Electrodes or Stainless Steel Electrodes

1. Application:

For testing insulating material

2. Standards compliant

IEC60065, UL1310

3. Introduction

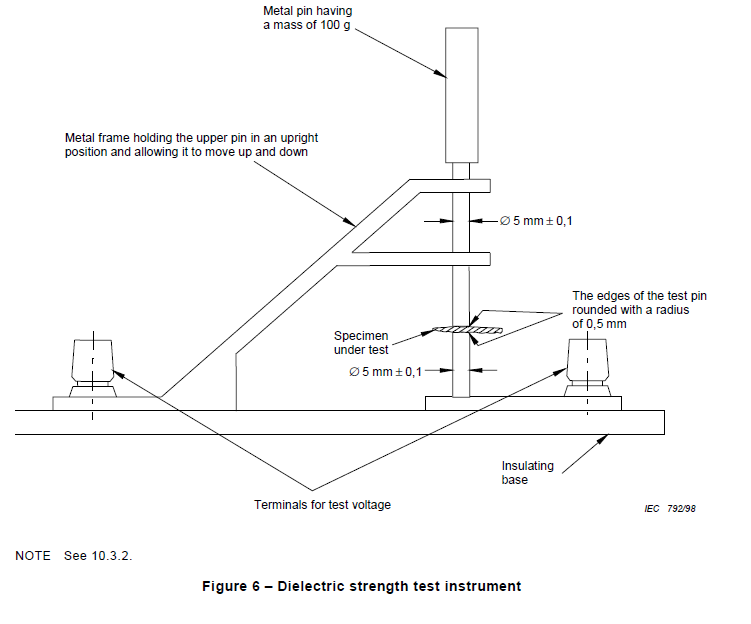

The equipment is designed according to IEC60065 and UL1310, It’s mainly used for testing thin-layer insulation material electric strength. Stand part of the test device using the whole structure, made of 304 plate material processing. To improve the insulation board and creepage dielectric properties, surface brushed polished, bottom bracket the minimum distance from the edge of >35mm, the altitude of 2000 meters designed to meet the strength test requirements of 12KV.

4. Technical Parameter:

Standards	IEC60065	UL1310
Mass of the moveable electrode	100g±1g	50g±1g
Diameter of metal pin	Φ5mm±0.1mm	Φ6.4mm±0.1mm
Diameter of support pin	Φ5mm±0.1mm	Φ6.4mm±0.1mm
edges rounded radius	0.5mm	0.8mm
Material of metal pin and support pin	Stainless steel or brass

5. Picture:

Brass Electrodes Dielectric Strength Tester UL1310 12KV For Insulating Material
